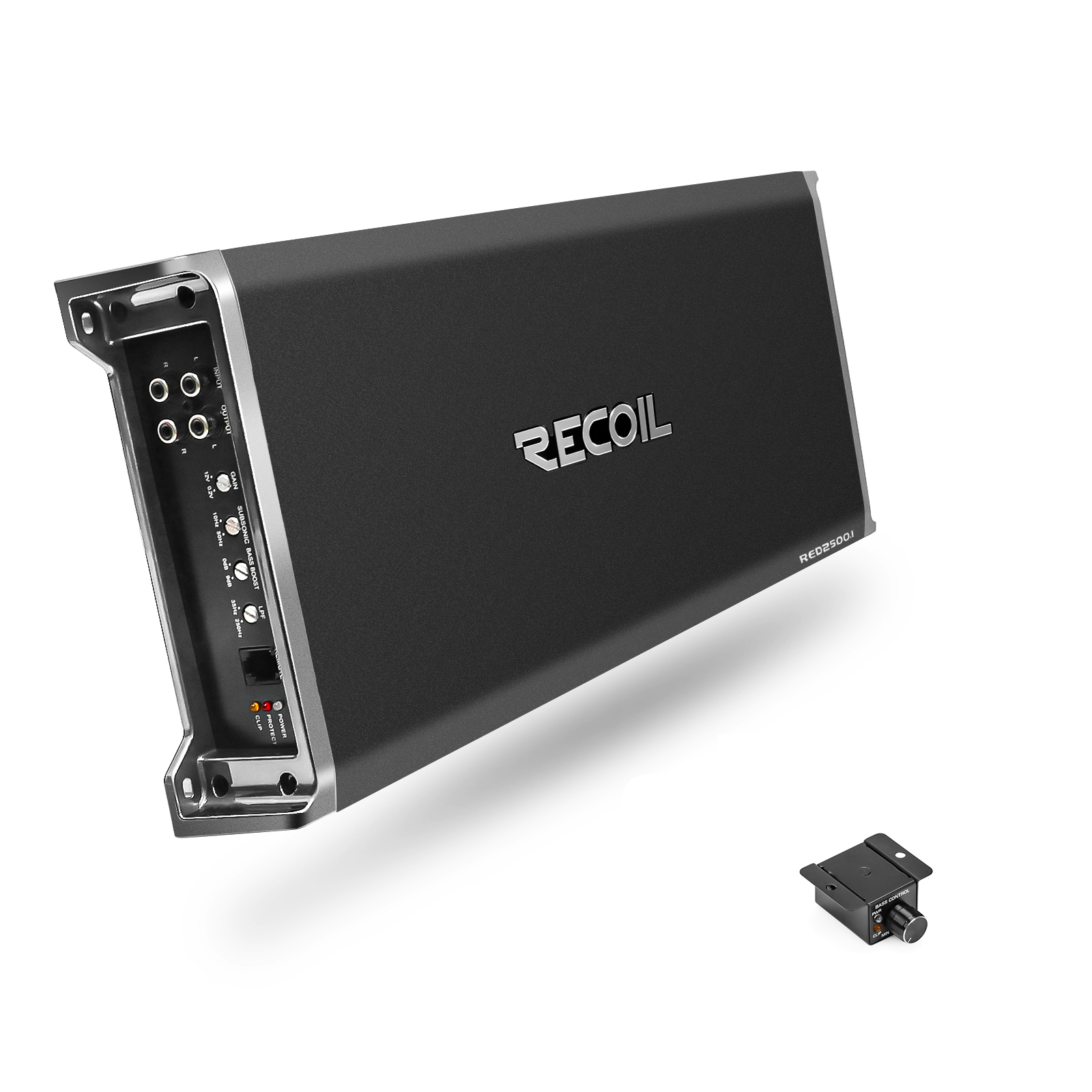

Introductions:Recoil engineered the RED2500.1 Class D mono-block subwoofer amplifier to be dominant in both power and reliability. The RED2500.1D is 1-Ohm stable and utilizes a wide array premium components that make it extremely powerful and reliable – such as its high speed MOSFET power supply and advanced PCB board layout. Conservatively rated at 2500 watts RMS power at a 1-ohm load.
Furthermore, the oversized 1/0 gauge power and ground terminals found on the amplifier allow for maximum current flow. You’ll have full reign over your amplifier with the built-in user control panel, featuring a bass EQ, and variable adjustment tunings for gain level, low-pass filter, and subsonic filter.
In addition to all of the above features, this model also features 4-way protection circuitry, including electrical shortage, overheating, low voltage, and more.
Specification:
1-Ohm Stable Car Subwoofer Amplifier
Class-D Monoblock Subwoofer Amplifier
4 Way Protection Circuitry: Thermal, Voltage, Speaker, DC
RMS Power at 2 Ohms: 1,500 Watts x 1 Channel (14.4v)
RMS Power at 4 Ohms: 840 Watts x 1 Channel (14.4v)
RMS Power at 1 Ohm: 2,527 Watts x 1 Channel (14.4v)
Peak Power at 1 Ohm: 5,000 Watts x 1 Channel (14.4v)
High Speed MOSFET Power Supply
Soft Turn on Circuit
Frequency Response: 12Hz – 260Hz
Signal to Noise Ratio: 98dB
Bass Boost: 0 – 9dB
Low Pass Filter (Variable): 40Hz – 260Hz
Subsonic Filter: 12Hz – 55Hz
Remote Bass Knob & Wire Included
1/0 Gauge Power and Ground Terminals
Fuse Rating: 250 Amp
Dimensions: 19.7″ x 7.6″ x 2.2″ (500mm x 193mm x 56mm)
